快速建立零件資料庫
在電子電路設計流程中,當有新零件需求時,除了確認其規格外,接下來就是如何應用在線路中,而想要將新的零件用於線路圖或 PCB Layout,那麼就必須建立其零件庫。然而,不管是電路圖還是 PCB Layout,建立零件時,最難的就是針對 BGA / FPGA或其他多 pin 腳的零件快速輸入 pin number 與 pin name or type。
現在 OrCAD Library Builder 可以直接從零件上的 Datasheet 中擷取 Pin Name、Pin Number、Pin Type…等資訊,用以建立線路圖或 PCB。
功能中包含線路圖 Symbol Builder 和 PCB Footprint Builder。Symbol Builder 可以利用零件 Datasheet 或是 Pin File 的檔案,快速將零件 pin 腳位的資訊建立為表格,進而建立 OrCAD Library 零件;Footprint Builder 則可以透過自行定義的零件設定檔案或是 IPC7351 的標準規範,定義其 Footprint 零件建立標準,未來只需再定義零件焊點、間距與其他相關資訊後,即可快速建立 Layout Footprint,且可透過 UI 建立 3D-STEP Model 外型並且套用。
![](img/product/orcad/or_lib/product_or_lib_intro.png)
OrCAD 產品關係圖
![](img/product/intro_product.png)
OrCAD Library Symbol Builder
支援多種資料載入格式,如使用一般的零件 Datasheet PDF 檔案,可直接從 Datasheet 的 pin table 中擷取 pin 腳資訊。
![](img/product/orcad/or_lib/function_01.png)
支援從 BGA pin 的位置擷取 Pin Number 和 Pin Name。
![](img/product/orcad/or_lib/function_02.png)
透過表格的設定,可直接看到零件 Symbol Create 的圖形,並且可透過此 UI 介面,重新調整 Pin 腳位置。
![](img/product/orcad/or_lib/function_03.png)

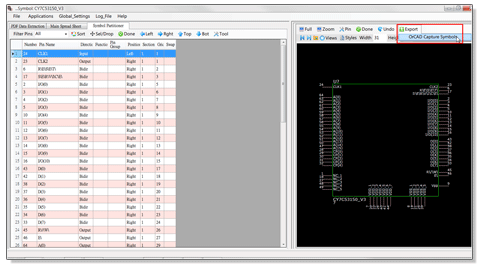

調整完畢後,可透過 Export 功能,將零件輸出到 OrCAD Library 中。
![](img/product/orcad/or_lib/function_04.png)
輸出到 OrCAD Library 直接建立為新的零件。
![](img/product/orcad/or_lib/function_05.png)
OrCAD Library Footprint Builder
Footprint Builder 在 Create 零件可以選擇使用 User Defined Land Setting 或是 IPC7351 的格式定義新零件。
![](img/product/orcad/or_lib/function_06.png)
新增零件時選擇 IPC7351 零件範本,可直接載入所要建立的零件外型。
![](img/product/orcad/or_lib/function_07.png)
載入零件範本後,UI 設定零件參數,如寬度、零件 Pin 腳數量、零件高等資訊。
![](img/product/orcad/or_lib/function_08.png)
Pad Stack 的功能,可以自行定義零件 Pad 的大小與形狀等資訊。
![](img/product/orcad/or_lib/function_09.png)
除了零件的俯視圖外,也可透過 UI 中的 Side View 功能,看到側面圖與零件高度定義等資訊。
![](img/product/orcad/or_lib/function_10.png)
透過 Generate STEP 功能,可直接產生 3D-STEP 的 Model,未來可直接套用到 Allegro 中使用。
![](img/product/orcad/or_lib/function_11.png)
零件建立完成後,即可透過 Export 功能輸出到 Allegro / OrCAD PCB Editor 中。
![](img/product/orcad/or_lib/function_12.png)
完成圖示:
![](img/product/orcad/or_lib/function_13.png)
Allegro 3D 圖示效果
(已設定 3D-STEP Model) :
![](img/product/orcad/or_lib/function_14.png)
Library Manager
Footprint 建立後,透過 Library Manager 的功能,可以載入先前建立的 Capture 零件,或 Import 過去建立的 OrCAD Library 零件。
![](img/product/orcad/or_lib/function_15.png)
載入零件後可透過 Data Compare 的功能比對所建立的 Footprint 與 Symbol Pin Number 的差異。
![](img/product/orcad/or_lib/function_16.png)
當有錯誤時,會顯示有多少 Pin 不吻合。
![](img/product/orcad/or_lib/function_17.png)
透過 Log 畫面可以知道零件建立後,Symbol 與 Footprint 的 Pin 是否吻合。
![](img/product/orcad/or_lib/function_18.png)
